Le nouveau panneau de controle Auxbeam RVB est maintenant disponible !
Le système peut être commandé via un panneau de commande ou un smartphone. Il ne se limite pas à contrôler simplement le "ON/OFF" des lumières LED ou des appareils électriques. Changez la couleur du rétroéclairage et les modes d'éclairage pour vous amuser à programmer avec le dernier panneau de commutation RVB Auxbeam !
Upgraded Functions:
? XL size - 5 Inch panel & 1 Inch button, larger than the common model
? RGB backlight - Unlimited color options match dash lighting and vehicle
? 3 mode setting - Toggle/ Momentary/ Pulsed
? DIY switch panel - Use the provided 60pcs switch labels to indicate what's connected to that switch.
? 10FT wiring harness - Extend from 9FT to 10FT
Specification:
- Working voltage: DC 12-24V
- Max current: 60A
- Rated voltage: 12V 20A / 24V 10A
- Operating at 12 Volts: max power rating of 720W
- Operating at 24 Volts: max power rating of 1200W
- Switch operation: On-Off
- Operating temperature: -40°C - +105°C
- Waterproof rating: IP65
Features:

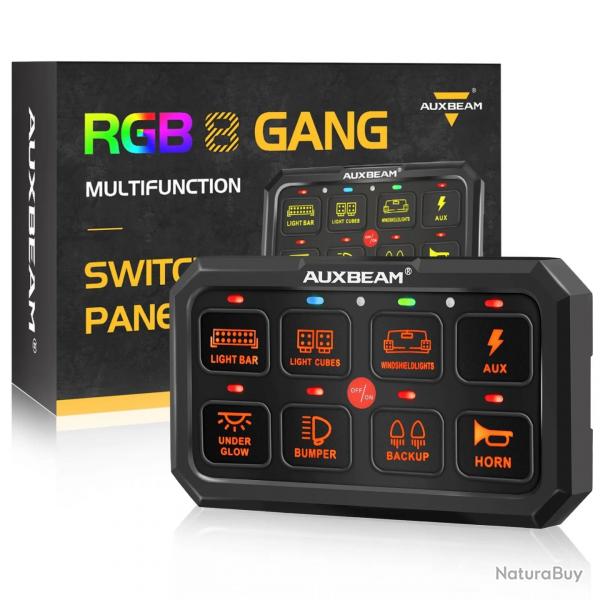

?RA80 XL RGB Switch Panel
- 8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices just from one convenient place at the same time. Meet all your electrical needs.
- XL size. 5 Inch panel & 1 Inch button, larger than the common model. You can command all your vehicle accessories by the tap of your finger in a more easy and comfortable way.
- 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
? RED-Toggle, Constant light mode (Great for things like fog lights or driving. ) ? BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.
? GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
- RGB backlight color. Adjust backlight color and brightness to match your vehicle.
- Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
- Customize your own switch panel with 60 universal stickers. Use the provided switch labels to indicate what's connected to that switch.
- Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
- Waterproof IP65, high sensitivity, stability and strong anti-interference ability
- Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
- With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
Package Included:
- 1 Set of RA80 XL Switch Panel (all necessary hardware and wiring harness is included)
- Installation Instructions
